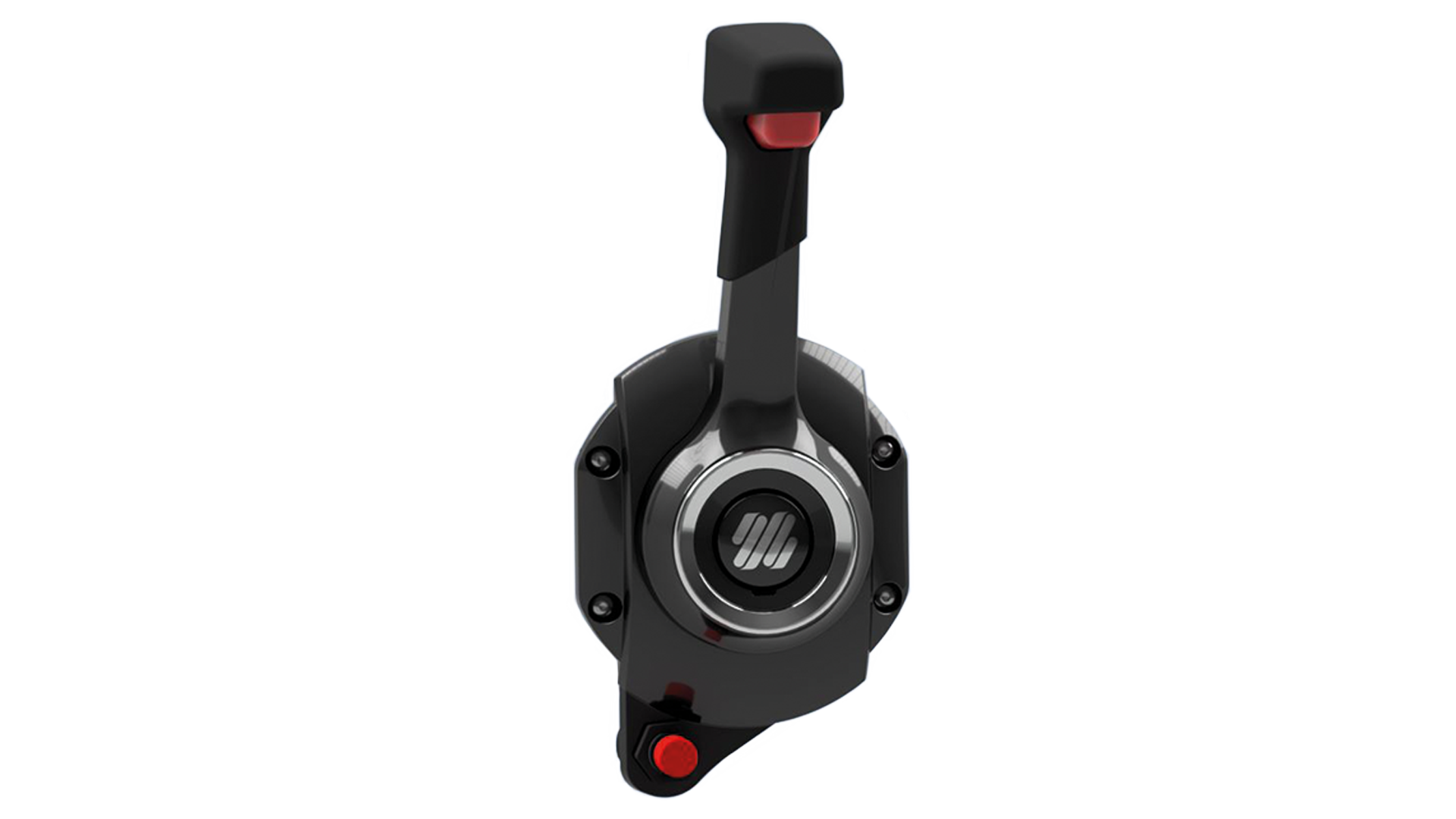

Single lever / dual action control to operate both throttle and shift.
Suitable for any type of boat with outboard engine or sterndrive units.
• Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
• Provided with an easy adjustable brake tension release system
• Push-in button for throttle operation in neutral (engine warm-up)
• Lock in neutral trigger to prevent accidental ingaging
• X41 (with IP67 Protection) and X48 optional neutral safety switches available to prevent in-gear starting
• Exceeds EN ISO 11547 standards when X41 safety switch is installed
• B110 ETC (Electronic Throttle Control) available upon request
• Center console trim switch thumb operated
• For use with Ultraflex C2, C8 and MachZero control cables
• Ultraflex C5 and Mach5 cables require the K74 connection kit
• Ultraflex C36 and Mach36 cables require the K75 connection kit
• Ultraflex C14 and Mach14 cables require the K76 connection kit
| Label | Value |
|---|---|
| Lever | Single Lever |
| Lever control | Dual action control |
| Assembly | Center control Side Mount |
| Application | outboards, sterndrives |
| Version | Fully mechanical |
| Adjustable friction | Provided |
| Engine warm up button | Provided |
| lock-in trigger | Provided |
| Power trim switch | Provided |
| Kill Switch | Provided on the KS version |
| X41 Neutral Safety Switch - with IP67 Protection | Optional |
| X48 Neutral Safety Switch | Optional |
| Lever Stroke | +/-95° |
| Control cables | C2, C8, MACHZero, |
| Control cables that require a connection kit | C5, MACH5 (K74); C36, MACH36 (K75); C14, MACH14 (K76); |
| Model | Part Number | Description |
|---|---|---|
| B110B | 39367S | Black, with trim, with no kill switch |
| B110W | 43521Y | White, with trim, with no kill switch |
| B110B/KS | 43522A | Black, with trim, with kill switch |
| B110W/KS | 43523C | White, with trim, with kill switch |
| X41 | 38130F | Neutral Safety Switch - with IP67 Protection |
| X48 | 43527L | Neutral Safety Switch |
