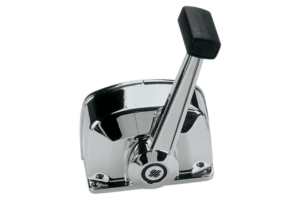

Single lever / dual action control to operate both throttle and shift.
Suitable for any type of boats with outboard or I/O power plants.
• Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
• Made of marine aluminum, chrome plated
• Pull-out handle disengages shift for engine warm-up
• Neutral safety switch X12 – 34543Q (optional) prevents in-gear starting
• Exceeds EN ISO 11547 standards when X12 safety switch is installed
• For use with all Ultraflex engine control cables except C22, C36 and MACH36.

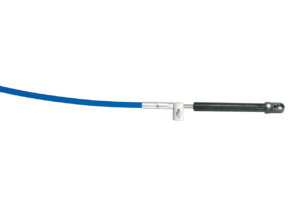

• Ultraflex C5, C16 and MACH5 cables require K35 kit – 34730U
| Label | Value |
|---|---|
| Lever | Single Lever |
| Lever Control | Dual Action Control |
| Assembly | Top Mount |
| Application | outboards & sterndrives |
| Material | Marine Aluminium |
| Colours | Chromed |
| Version | Fully mechanical |
| Adjustable friction | Not provided |
| Pull-out handle for warm-up | Provided |
| Positive lock-in neutral | Provided |
| Power trim switch | Provided |
| X12 Neutral Safety Switch | Optional |
| EN ISO 11547 | Yes, when X12 safety switch is installed |

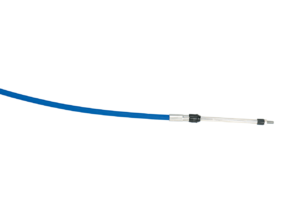

| Control cables | C2, C8, MACHZero, |

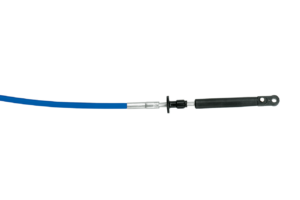

| Control cables that require a connection kit | C5, C16, MACH5 (K35); C14, MACH14 (K51); |
| Model | Part Number | Description |
|---|---|---|
| B76 | 35312E | Chromed Single lever control for one engine, with trim. |
