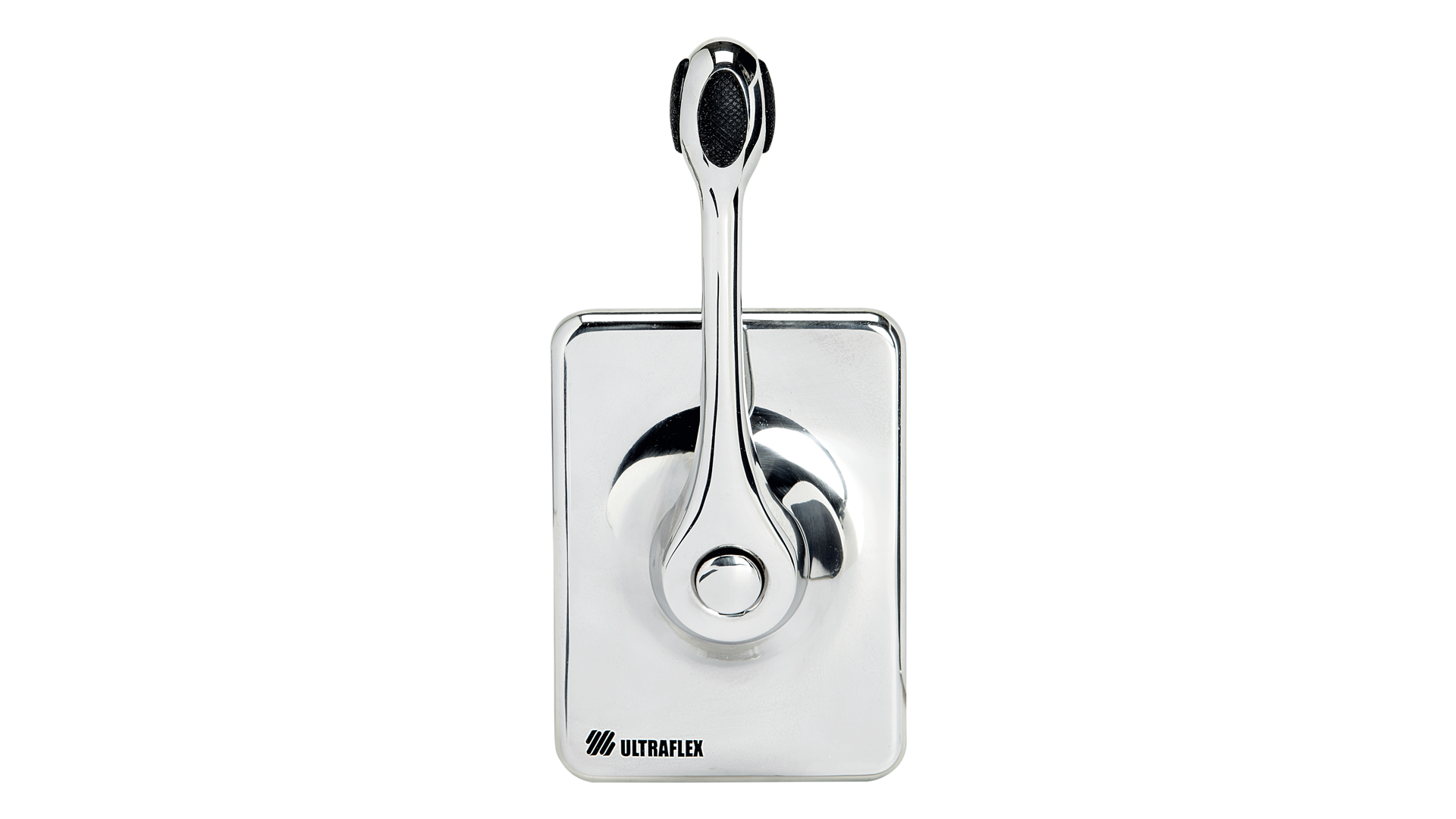

Featuring AISI 316 stainless steel lever and bezel, the B400 has a sleek and modern design which is ideal for sailboats.
The B400 has an universal control mechanism that allows for both “push” or “pull” for throttle and shift, push button warm up, and will accept 33C style cables without any adapters.
• 316 stainless steel lever and flange for a better resistance in the marine environment
• Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
• Can be installed horizontally or vertically, on the starboard or port side of the boat
• Provided with a throttle friction system easily adjustable
• Push-in button for throttle operation in Neutral (ENGINE WARM UP).
• Neutral safety switch X41 – 38130 F (optional) prevents in-gear starting
• Exceeds EN ISO 11547 standards when X41 safety switch is installed
• Accept Ultraflex C2, C8, MACHZero control cables (no kit required)
| Label | Value |
|---|---|
| Lever | Single lever |
| Lever Control | Dual Action Control |
| Assembly | Side Mount |
| Installation | Horizontally or Vertically |
| Applications | Sailing boats, inboard |
| Version | Fully mechanical |
| Adjustable friction | Provided |
| Engine warm up button | Provided |
| X41 Neutral Safety Switch | Not included - needs to be ordered separately |
| EN ISO 11547 | Yes, when X41 safety switch is installed |
| Control cables | C2, C8, MACHZero |
| Model | Part Number | Description |
|---|---|---|
| B400 | 42076Y | B400 Control Box - Fully mechanical version |
