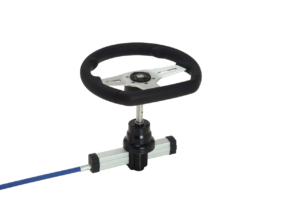

TM87J – Rack and Pinion Tilt steering systems for Jet boats
• All stainless steel cable output ends
• Made of corrosion resistant materials
• Standard 3/4”tapered shaft
• TM87J steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• Optional steering wheel
• Exceeds ISO 8848 safety standards
• Exceeds ABYC P17 safety standards
Meet with the EN28848, EN29775, ABYC P22 and UKCA standards
| Label | Value |
|---|---|
| Installation | 90° or 20° |
| TM87J stroke | 93 mm (3.7”) |
| Lock-to-lock steering wheel turns | Approx 1,5 |
| Max. steering wheel diameter | 420 mm (16.5”) |
| Min. steering cable bend radius | 200 mm (7.9”) |
| Model | Part Number | Description |
|---|---|---|
| COMPONENTS - TO BE ORDERED SEPARATELY | ||
| TM87J | 43839G | Preassembled helm with steering cable |
| G89 | 43844Z | Standard helm with X52 tilt mechanism (to be ordere separately) |
| G89ZT | 43845B | Zero torque helm with X52 tilt mechanism (to be ordere separately) |
| X52 | 39250U | Tilt mechanism |
