Planetary Gear Design
• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion resistant materials
• Standard 3/4″ tapered shaft
• Minimal feedback
• T71FC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph our hydraulic steering systems are recommended
• Optional steering wheel
• Engine connection kits

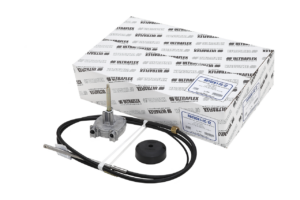

• Available in package with ROTECH-I
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
| Label | Value |
|---|---|
| Installation | 90° or 20° |
| M66 steering cable stroke | 228 mm (9") |
| Lock-to-lock steering wheel turns | approx. 3,8 |
| Max. steering wheel diameter | 406 mm (16") |
| Min. steering cable bend radius | 200 mm (7.9") |
| Model | Part Number | Description |
|---|---|---|
| T71FC | 38867H | Single cable steering helm |
| X34 | 36654B | Black bezel, 90° mounting |
| X34W | 40654C | White bezel, 90° mounting |
| X91 | 42850N | Chrome plated bezel, 90° mounting |
| X35 | 36655C | Black bezel, 20° mounting |
