Planetary Gear Design
• Specifically designed for high performance and high efficiency applications
• M90 Mach cable (patented): performance, flexibility and durability increased by top quality materials and construction.
• Tilt range of 48° and five locking positions
• Fast connect, simple installation, patented end fitting.
• Tilt device eliminates underdash movement
• Standard 3/4” tapered shaft – stainless steel
• Engine side stainless steel cable output end featuring patented gasket
• Corrosion resistant materials
• T103ZT steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph our hydraulic steering systems are recommended
• Optional steering wheel
• Engine connection kits
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
Label | Value |
---|---|
M90 steering cable stroke | 228 mm (9") |
Lock-to-lock steering wheel turns | approx. 4,2 |
Max. steering wheel diameter | 406 mm (16") |
Suggested steering cable bend radius | 200 mm (7.87") |
Min. steering cable bend radius | 150 mm (5.9") |
Model | Part Number | Description |
---|---|---|

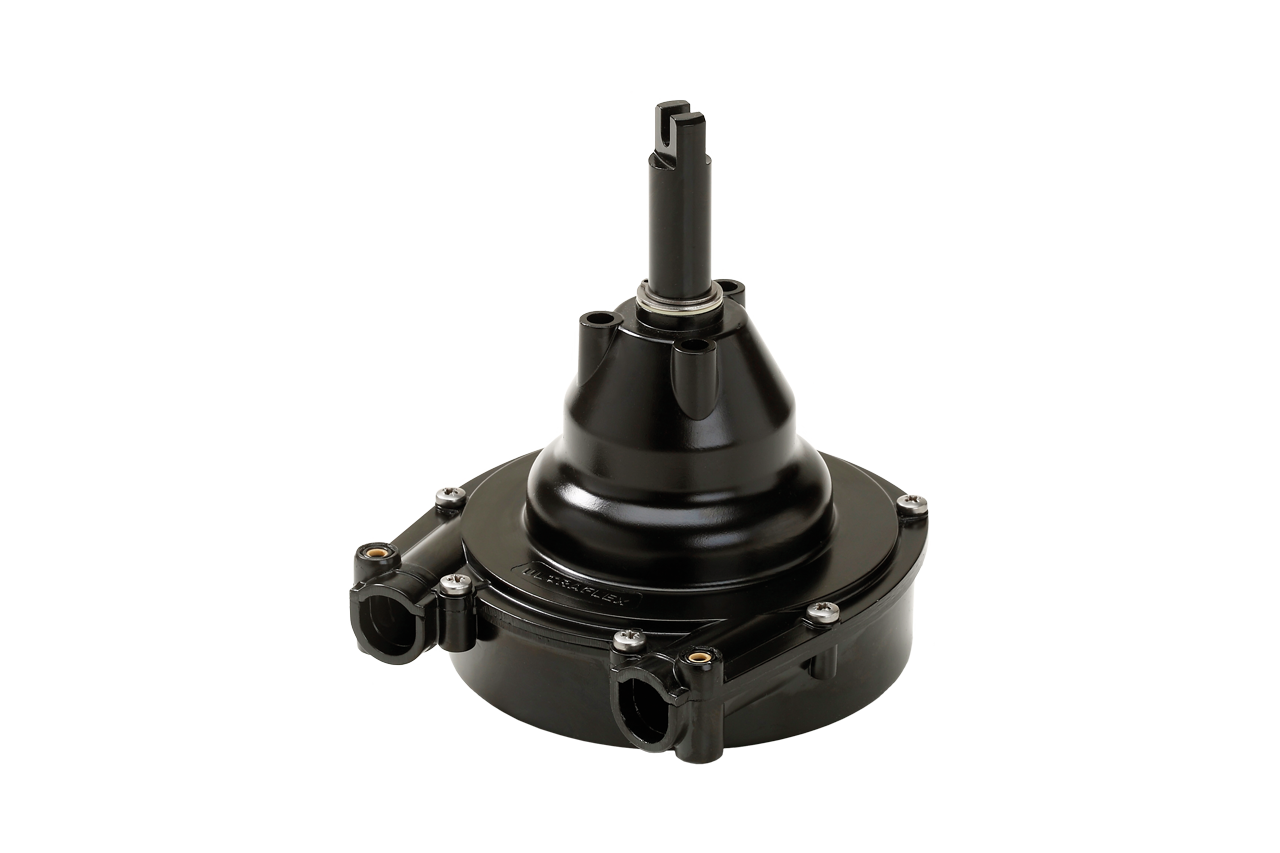

T103ZT | 42840K | Zero torque single cable steering helm |
X52 | 39250U | Tilt mechanism |
