MasterDrive™ SYSTEM FEATURES
• Eliminates torque at the steering wheel
• Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED).
• Automatically reverts to manual mode in case of power loss.
• High efficiency, low Amp draw
• The system always running permits immediate control in any sea conditions
• Equipped with safety switch ON/OFF (SMART BUTTON)
• Can be used on dual station installations
• Suitable for use with autopilot
• Low noise
• Voltage: 12VDC
• CE marked in conformity with ABYC P21, ISO 10592 safety standards
• Ignition protected (SAE J-1171 and UNI EN 28846)
SYSTEM COMPONENTS:

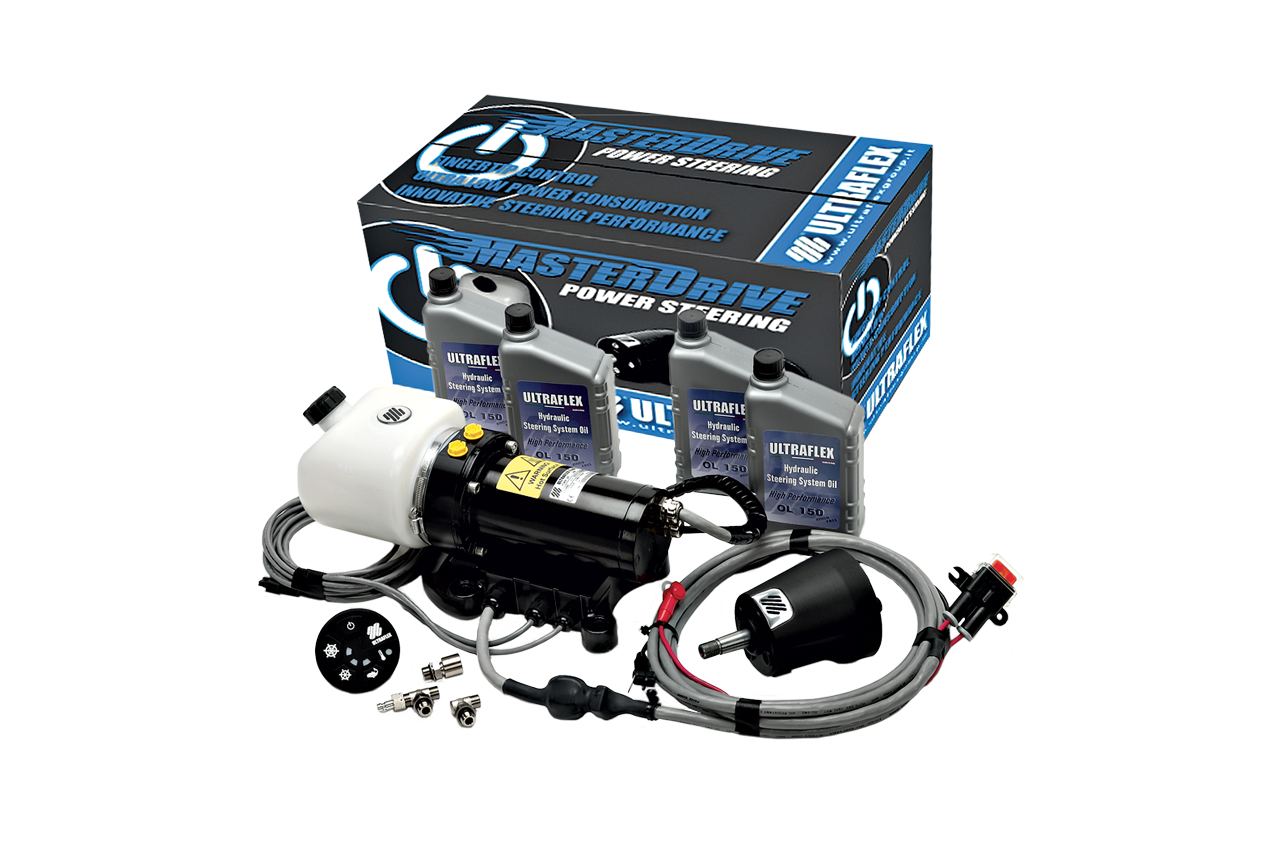

• 1 single packaged KIT MD for single station containing:
– 1 UH Front or tilt mount Master Helm
– 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
– 1 UCMD User Interface
– 4 OL 150 bottles of hydraulic oil
• 1 inboard cylinder (suggested model: see “order guide” next page)
• 1 KIT MD2 for dual station
• Flexible hydraulic hoses.
• 1 Tilt mechanism X66 – 40613M suitable for Tilt Mount Helm. Tilt range of 48° and five locking positions
• 1 Steering wheel
• 1 Instruction manual
