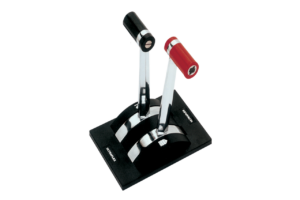

Two lever / single action control: each lever operates separately either the throttle or the shift
Suitable for any type of boat with inboard engine
• Flush mount suitable for exposed positions such as fly bridge
• Made of marine aluminum with chrome plated lever
• Adjustable friction to avoid throttle creep and positive detent for shift. Both can be adjusted from the outside
• Neutral safety switch X12 – 34543Q (optional) prevents in-gear starting
• B58 model is provided with an interlock kit to prevent accidental gear engagement
• Exceeds EN ISO 11547 standards when X12 safety switch is installed
• For use with Ultraflex C2, C8 and MACHZero engine control cables
• Ultraflex C22 cable requires K22 – 34713Q connection kit
| Label | Value |
|---|---|
| Lever | Two Lever |
| Lever control | Single action control |
| Assembly | Top Mount |
| Application | inboards |
| Version | Fully mechanical |
| Adjustable friction | Provided |
| X12 Neutral Safety Switch | Optional |
| Lever Stroke | +/-95° |
| Control cables | C2, C8, MACHZero |
| Control cables that require a connection kit | C22 (K22) |
| Model | Part Number | Description |
|---|---|---|
| B46 | 34461P | Throttle and shift bent levers |
| B46T | 34462Q | Throttle only bent levers |
| B46S | 34463R | Shift only bent levers |
| B58R | 34570W | Throttle and shift bent levers with interlock. Right hand installation |
| B58L | 34716T | Throttle and shift bent levers with interlock. Left hand installation |
